A Very Simple ADSB Receiver
Return to Homepage

The old web-page with the different projects can be found here.

Last update 7 May 2010:
TOSHIBA TA8754 and TA8804 Demods seem to work. Good news for many ALPS BSJE tuner owners!
1 Mar. 2010:
Software Initialisation file explained. Preamp resistor changed (Thanks Renato for pointing out).
26 Feb. 2010:
Preamp gain plot. Howto build antenna.
22 Feb. 2010:
Simple Preamp with BFP420.
9 Feb. 2010:
Toshiba based demodulators do not work.
5 Feb. 2010:
- Removed old asm source file
- Updated current asm file for SF1218C
- Added info on SF1218C-MK2
- Added update to VB file
3 Feb. 2010:
- Added asm source file
- Updated Tuner List with some of the tuners sent from Antonio (Thanks for shipping the tuners to Luxembourg!)

It is now the end of 2009 as I write this siting in the sun in the Philippines. This project has been going on for over a year now and the more I get involved with other people, the more I see the need for a simple receiver. After many designs, some documented here, I have come to reduce the receiver to the maximum and this is the result ...

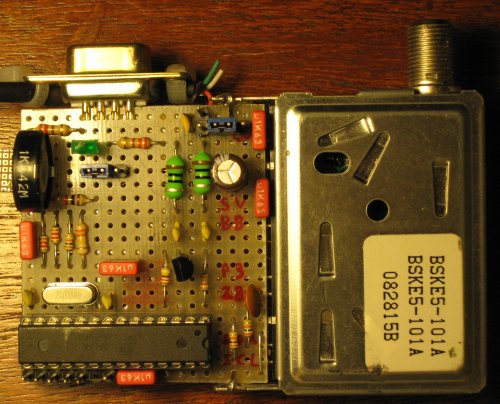

Very Simple Receiver Component Side

Very Simple Receiver Back Side

With this design you can expect to get several 100 km range with a good antenna. I use a home made J-pole with a single 32 Eurocent BFP420 transistor giving excellent low noise gain for very little money. It can be bought like most of the needed components at Reichelt. Many good quality (Kathrein for example) Satellite L band line amplifiers use this transistor and if you can get at least 12 Volts to the preamp they offer excellent performance despite being laid out for 75 Ohms. I'll document the preamp later. This is what you can get in Luxembourg with a clear view to the South for several kilometers:

One Day Plot Thumbnail
Click on image for real size.

The final design uses an unmodified ALPS tuner which was available at www.pollin.de for 50 Eurocent. The total project cost ended up below 5 Euro! Sad to say the tuner is no longer available. But I am sure a similar tuner could be used. The trick in this design is to attenuate the input on the tuner so that the FM demodulator is working just above it's noise floor threshold. To achieve this you can either use a variable attenuator for satellite reception connected in your coaxial line or modify the tuner slightly. Modifying is "nur für Experten" as it is very cramped inside. Just adding a small piece of open ended coaxial cable on the end of the tuner with no attenuator and going outside, one can receive signals up to several tens of kilometers away!

I would be interested to hear from anybody using old analog satellite tuner modules and if they work. The ALPS BSKE5-101A has a Philips TDA8012 Demodulator chip and a 5055 PLL type tuner, in this case TSA5055T but there are many manufacturers. The Toshiba TA8754A and the TA8804F seem to be more popular in tuner modules but so far tests on these demodulators have shown them to be very good FM demodulators as they should be but they do not want to demodulate PPM signals, so I'm sorry to say they can't be used for this project. With the ALPS tuner modules, Toshiba demodulators seem to be in BSJE series where as TDA8012 demodulators seem to be in BSKE series (This is an assumtion).

Link to the List of known Tuners.

Only a simple power supply of 5 volts is required as the PLL is working at the bottom end of the VCO range to achieve reception. The tuning is fixed to either above or below 1090 MHz so that the signal ends in the flank of the SAW filter. Different tuners may have different SAW characteristics and so may need to have their frequency modified. Also depending on your location DME might be a problem on one of the two frequencies.

The ADSB decoding is done through an ATmega48-20. Signals are detected using the analog comparator input. The manchester coded frame is decoded after a SYNC is detected and if the decoding is done without error the decoded frame is output in HEX on the serial port at 115200 baud. The microprocessor has still many spare pins which I intend to use with a small Xilinx CPLD in the future to do multilateration. Multilateration could be fun to implement as one could use the time difference between aircraft that broadcast their position in order to find the aircraft that do not. A free running oscillator like the 20 MHz source on the microprocessor should be enough to achieve an accuracy below one kilometer.

The circuit is very basic and has an analog part and a digital part. The analog part takes the signal from the tuner, filters the ADSB signal for optimal bandwidth and sets the signals right for the analog comparator of the ATmega48 microprocessor:

Analog Part

The digital part is all that is needed to make the microprocessor run and includes the Quarz for the oscillator and a level shifter for the RS232 serial connection:

Digital Part

Some of the microprocessor I/O lines can be used for configuration and for signaling (LEDs, etc). Other I/O lines could be used for multilateration using a CPLD (i.e. XC9572 from Xilinx. I am still working on a circuit board layout. Due to the simpleness of the circuit the layout could be single sided including the future socket for the CPLD. Current pin 6 of the microcontroller goes to a green LED connected to GND via 330 Ohms to indicat a valid frame received. This may change depending on the final layout with the optional CPLD.

The program is 100% assembler and is written for the Atmel AVR Studio which is available for free on the Atmel web site. It sets up the serial line speed, configures the analog comparator. The main loop waits for a valid sync pattern and then decodes the manchester encoded ADSB frame. If a manchester encoder bit is corrupted the decoding is aborted. When a full frame is correctly received, the result is sent in Hex to the serial line and the loop starts again. During the serial line transmission no frames are received. Anyway it is not important to receive all frames in order to watch the planes on the monitor screen!

Download the ASM Source file for use with the free Atmel AVR Studio. Assemble for a ATmega48-20 target. Atmega48 Fuses must be set for External Fast Quarz Oscillator and Clockoption must be off for maximum speed of the microprocessor.

The output would look like this:


A star is a start of frame indicator, 112 bits frame follows in Hex and is terminated with a semi colon. These frames where received from air frame 75805B here in Cebu. This can be looked up on Airframes database and one can see it to be registration RP-C3195 which is an Airbus A-319-111 belonging to Cebu Pacific Air.

More info on ADSB and how the frames are constructed can be found on Radar Basics especially the chapter on Downlink Broadcast and many other sites.

Other sources for the ALPS tuner:

albs Alltronic Lagerliste

Other maybe possible tuners:

Modulo tuner decoder SAT

Further tuner info:

DJ6IY Pinbelegung einiger analoger SAT-Tuner

Decoding the frames

To decode ADSB there are two main documents you will need to study.

The first document is:

ICAO: Annex 10 to the Convention on International Civil Aviation, Volume IV: Surveillance and Collision Avoidance Systems. Latest I could find was Fourth Edtion July 2007.

This document describes how Mode S works, the different formats, and how the extended squitter is encoded and transmitted at 1090 MHz. If you look hard you can find an old PDF version of this document on a danish web site (sorry I'll say no more).

and the second document is:

ICAO: DOC 9871 (AN/464) Technical Provisions for Mode S Services and Extended Squitter. This is a fairly new document, First Edition - 2008, and I think it has replaced the famous DO-260A.

This goes into the nitty gritty and ugly details of the strange beast that is an ADSB broadcast. I had to realy get my teeth into this document. I'm afraid you have to pay for this one. Bits and pieces about decoding the famous CPR (Compact Position Reporting) frame can however be found throughout the internet as it's encoding and reliability was subject to much debate and some misunderstandings and about 30 bits and pieces can be found on the web. Together they give a good idea of what is going on.

Usefull things to look for are:
ADS-B for Dummies
Transition Table for NL(lat) Function
Technical Standard Order TSO-C166
Proposed Change for Global Decoding of the ES Surface Format
CRC Calculation for Mode-S Transponders

and go from there ...

As many e-mails ask me "how is it done?" I have made a small article on how to decode CPR frames.

The Software

Screen Shot

Currently only a basic software has been written for Microsoft Visual Basic 6 (sorry Linux guys, but I just wanted to plough ahead with what I knew).

It is still buggy and some features are just empty buttons but in Europe and the Philippines, it works. When planes jump accross "NL" boundries, the coordinates go wrong for several received frames until it syncs to the next "NL" box.

Type the COM port number into the text box and click start. Different Maps are defined in the setup.txt file.

The frames should apear like this video on the bottom left of the application.

Download the new version with maps (sorry for old file without maps) which is Version 10.

Any feedback on the software or hardware are very welcome, my email is on my main page.

Please be aware the software is very dirty and only written to test the hardware. A setup file tells the program what maps are available. The program has still many errors and many parts that do not work or are incomplete or disabled. Like I said ...

The setupfile starts with a single line which tells how many entries there are. The maps are described one at a time, one per line as follows:
"Map Name", "Map location.jpg",MapX,MapXsize,MapY,MapYsize,Size Of Dot during Plotting,Line Width during Plotting,Correction factor for Surface Positions

AirPosExp sets the expiry time (sec) for an airborne position.
DB Exp sets the time for an airplane to leave the database.
SurfPosExp sets the time for a surface position to stay valid.

You can also open a previous log (logged with a terminal software) and play the file.

Live List disables the update of the database window making the software much faster and enabling a cut and paste from the window.

As I said many things are incomplete such as kmh, etc ...

I hope some people out there decide to make a nicer interface as software is not my forte!

My Setup in Cebu, Philippines

My outside antenna is a Jpole tuned to 1090 MHz and a broadband preamp based on a BFP420. It is housed in a piece of gray PVC pipe and a yogurt pot on top. The cable run is about 25 meters. It is placed above the TV aerial to the side of our terrace.

Cebu Antenna

Test #2 with SF1218C-MK2

This is the second tuner I got to work. With a nice aerial and a preamp I get ranges over 200km radius. With a piece of wire I get about 25km from a high vantage point. Minimum attenuator at input to get FM decoder working is 6 dB. See pictures ...
SF1218C receiver
The SF1218C-MK2 receiver with a 6dB attenuator and a piece of co-ax open on one end by 6 cm.
SF1218C test outdoors
The device in test. Range: ca 25 km!

Links to other pages covering ADSB, Mode S and SSR

A simple ADS-B Decoder by  Bertrand Velle.
This Decoder goes along a similar route as my previous receivers but uses a PIC. Also Bertrand is analyzing more than just the DF17 ADS-B messages but also for example the TIS-B messages.

ADS-B and APRS projects by Andrew Rich.
Andrew has been doing work on ADS-B for a long time. A very interesting website, including ADS-B to APRS and captures of mode S frames as received on Andrew's SBS1 receiver.

G4FEV HomeMade ADS-B receiver by Dave.
A mix of his own and Bertrand's efforts. Nice cavity filter and simple homebrew RF frontend.

The miniADSB - 1090 MHz - Receiver Project.
A pure open-source hardware project.

1090 MHz-ADS-B-Receiver by vinculum.
The mikrocontroller.net forum is an excellent but mostly German forum. ADS-B is a regular topic there.

Other Tread with this Project.

For the antenna

Link to my BFP420 preamp.

Link to my J-pole antenna.
